Fractal Design Define R4 ATX Tower Case Blackout 2X5.25 8X3.5INT No PSU Front 2XUSB3.0 Audio

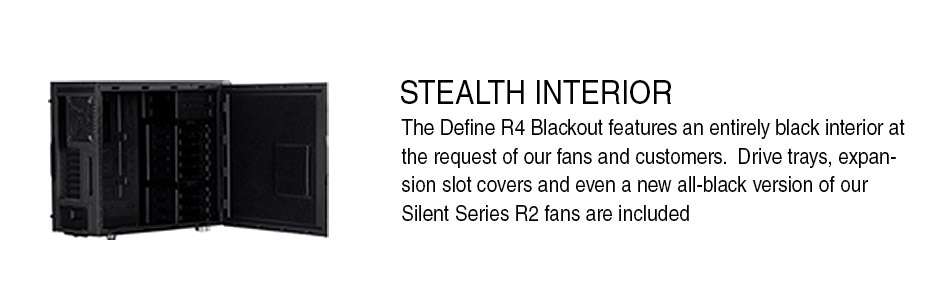

Fractal Design prides itself on being the company that listens and the Define R4 Blackout is proof of that. Packed with all of the great features that made the original Define R4 one of the most popular silent cases on the market, the Define R4 Blackout adds a subdued, all black interior. Exclusive to the North American Market, the Define R4 Blackout not only features black drive trays and expansion slot covers, it also includes the all new, all black Silent Series R2 Fans.

What It Is and Why You Need It:

• Motherboard compatibility - Mini ITX, Micro ATX, ATX
• ModuVent System offers optimal silence and performance capabilities
• 2 HDD cages ? 5 bay and 3 bay - 3.5? HDD/ 2.5? SSD (8 in total)
• Fan controller is integrated in the front panel and supports up to 3 fans
• 2 All-Black Silent Series R2 ? hydraulic bearing fans with longer life time included
• Supports graphics card lengths up to 295mm with top drive cage installed
• Supports graphics card lengths up to 430mm with top drive cage removed
• 2 x 5.25 inch bays with 5.25 -> 3.5 in converter included\
• Fan slots: 1 x 140mm and 1 x 120/140mm -front, 1 x 140mm - side panel, 1 x 140mm - rear, 1 x 120/140mm - bottom, 2 x 120/140mm top ? positions also support 240/280mm radiators

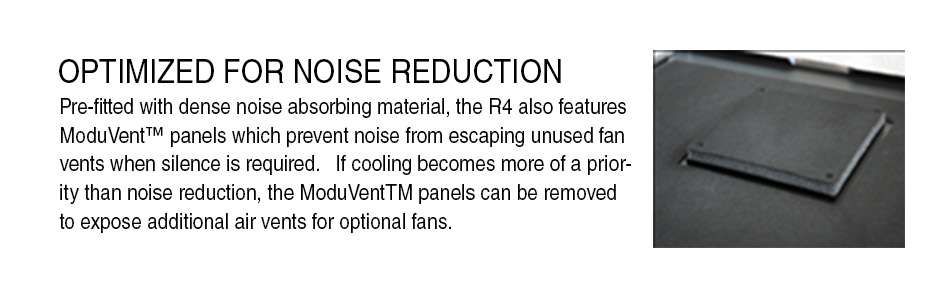

The side and front door panels of the Define R4 Blackout are fitted with dense, sound-absorbing material making it a benchmark for noise reduction. Moreover, the Define R4 Blackout accommodates up to 8 HDDs, all modern graphics card sizes, and multiple ventilation options - including two Blackout Edition Silent Series R2 hydraulic bearing fans - to keep internal components at optimal temperatures.

Configuration flexibility is enhanced thanks to two hard drive cages (featuring steel drive trays with black silicone mounting grommets) that support a total of (8) 3.5"HDDs or 2.5"SSDs. The top 5-bay cage is easily rotatable and removable; removing the top cage allows support for graphics cards up to 470mm in length! The bottom 3-bay cage is mounted to the chassis by screws instead of rivets, allowing you to easily remove both drive cages for complete flexibility. The spacious sleek black interior can support CPU coolers up to 170mm high. If cooling becomes more of a priority, this system can support up to 7 fans with removable, washable filters to provide airflow from 5 sides of the case. The case also includes cable routing cutouts with improved rubber grommets to ensure greater fit and retention. The bottom of the case has a filter over the power supply and 120/140mm intake fan vent which can be easily removed for cleaning.






Product Features:

• Pre-fitted with dense noise absorbing material
• ModuVent System offers optimal silence and performance capabilities
• 2 HDD cages ? 5 bay and 3 bay - 3.5? HDD/ 2.5? SSD (8 in total)
• Top HDD cage (5 HDD) can be rotated 90 degrees or removed for additional airflow
• 2 SSDs can be installed on the back of the motherboard plate
• A wider case body allows for much improved cable routing capability behind the motherboard, now 26 mm (8mm wider)
• Fan controller is integrated in the front panel and supports up to 3 fans
• 2 All-Black Silent Series R2 ? hydraulic bearing fans with longer life time included
• Top fan positions now allow slim 240/280mm radiators to be mounted
• Select slim radiators can be mounted in front fan holder (requires the bottom HDD cage to change position)
• New, tool-less front fan holder makes switching front fans easier
• Front fan filter is now easily removed and is washable
• The bottom air filter is now extended to cover the bottom fan position as well as the PSU air intake
• Bottom HDD cage is fitted with screws instead of rivets and can be easily removed
• Rubber grommets are improved to ensure better fit and retention
• Thicker steel improves case structural rigidity
• Convenient top I/0 panel for easy access
• Advanced Cable Management System
• Supports graphics card lengths up to 295mm with top drive cage installed
• Supports graphics card lengths up to 430mm with top drive cage removed
• 2 x 5.25 inch bays with 5.25 -> 3.5 in converter included
• Sleek all-black interior
• 2x USB 3.0, 2 x USB 2.0 and Audio I/O front panel ports
• Fan slots: 1 x 140mm and 1 x 120/140mm -front, 1 x 140mm - side panel, 1 x 140mm - rear, 1 x 120/140mm - bottom, 2 x 120/140mm top ? positions also support 240/280mm radiators
• Motherboard compatibility - Mini ITX, Micro ATX, ATX
