Netgear GS116 16-Port 10/100/1000 Mbps Gigabit Switch

Netgear GS116 16-Port 10/100/1000 Mbps Gigabit Switch (NetGear: GS116)
NetGearVPN: GS116
Vendor: NetGear
Price: $159.99 - $159.99 CAD from 1 stores
» Email this product to a friend   » Write a review
» Discuss on forum   » Post your deal
  Store Product Price

Online
NETGEAR ProSafe GS116 Gigabit Desktop Switch with Jumbo Frame Support
Newegg.ca - Once you know, you Newegg!
$159.99 CAD Buy Now

Product Reviews

Netgear GS116 16-Port 10/100/1000 Mbps Gigabit Switch
50%
Excellent
0%
Very Good
0%
Average
0%
Below Average
0%
Poor
Rating: 9.8/10
With 2 User Reviews
George
Rating:

Review Date: 10/29/09
Comment:
Needed something compact with lots of ports to fit my wiring cabinet. It has the features I need at a great value
Eli
Rating:

Review Date: 09/26/09
Comment:
NetGear provides quality and reliability alway. I highly recommend.

Product Features

16 Port Gigabit Switch

Power Up Your Small Network to Gigabit Speeds
Now you can have a powerful, high-speed network on a small scale. Netgear's GS116 Gigabit Ethernet Switch lets you build a system that provides a full, dedicated 1000 Mbps connections so you can move very large files across your network instantly. The standardsbased GS116 helps to protect your existing and future network infrastructure investments by painlessly integrating other 10, 100, and 1000 Mbps devices. This potent switch is ideal for workgroups or quickly upgrading workstations to full Gigabit speed, plus it's packed with ease-of-use features to simplify your workday experience. It's compact design fits neatly into small work spaces and, since it's self-cooling without a fan, it runs silently and unobtrusively.

Power-Packed
Moves huge files fast! Features 16 high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because Copper Gigabit Ethernet is a full duplex standard, you can get up to 2000 Mbps on each port.

Versatile
Integrates 10, 100, and 1000 Mbps devices on the same network and will honor Layer 2 802.1p traffic priority tags. Every port automatically senses the right speed and full/half duplex mode, while Auto UplinkTM technology automatically adjusts for straight-through or crossover cables.

Manufacturer's Product Tour - Click Here


Specifications

  • Network Ports: 16 auto-speed-sensing UTP ports
  • Forwarding Mode: Store-and-Forward
  • Performance:
    - Bandwidth: 32 Gbps (non-blocking)
    - Forward Rate(10 Mbps port): 14,800 packets/sec
    - Forward Rate(100 Mbps port): 148,000 packets/sec
    - Forward Rate(1000 Mbps port): 1,488,000 packets/sec
    - Latency (10 to 100 Mbps): 40 usec (max)
    - Latency (100 to 1000 Mbps): 10 usec (max)
    - Queue Buffer Memory: 512 Kbytes per port
    - MAC address database: 8000
    - Acousitc Noise: 0 dB
    - Heat Dissipation: 38.8 Btu/hr
  • Standards Compliance:
    - IEEE 802.3i 10BASE-T Ethernet
    - IEEE 802.3u 100BASE-T Fast Ethernet
    - IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    - IEEE 802.1p, WWR scheduling
  • System Requirements:
    - UTP Category 5 or better cables
    - Network card for each PC or server (e.g. GA302T)
    - Network software (e.g., Windows, Linux, MacOS)

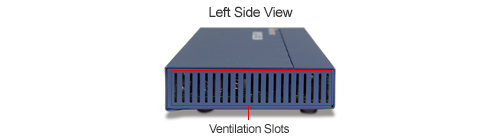

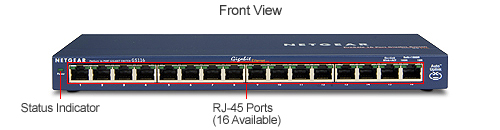

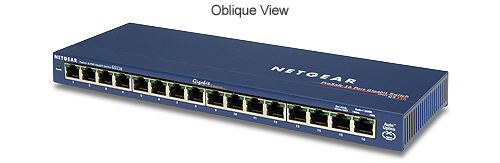

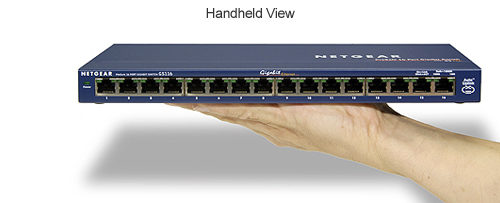

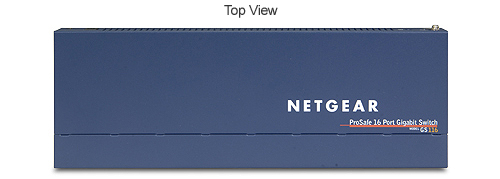

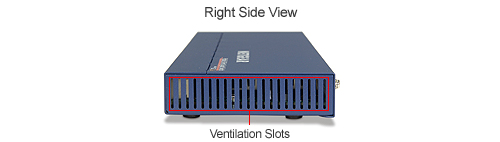

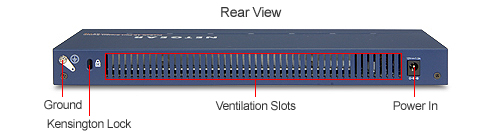

A Closer Look












What's Included



  • 16-port Gigabit Switch GS116
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/Support information card

Product Specifications

Model
BrandNETGEAR
ModelGS116
Spec
Switch TypeExternal
StandardsIEEE 802.3i 10BASE-T EthernetIEEE 802.3u 100BASE-T Fast EthernetIEEE 802.3ab 1000BASE-T Gigabit Ethernet
Network Management TypeUnmanaged
Jumbo FramesYes
Ports16 x RJ45
Speed10/100/1000Mbps
Buffer Memory512 Kbytes per port
Switching MethodStore and Forward
PoENo
StackableNo
SNMPNo
QoSNo
LACPNo
Layer2
Port MirroringNo
Module SupportNo
LEDsLink and speed indicators built into each RJ-45 port
VLAN SupportNo
Power18 W max and 12 V @ 15 A DC input

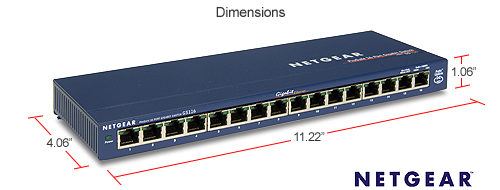

Dimensions11.2" x 4.1" x 1.1"
Weight2.0 lbs.
Temperature0ºC to 40ºC (32ºF to 104ºF)
Humidity10% - 90%, Non-condensing
Features
FeaturesBandwidth: 32 Gbps (non-blocking) Forward rate (100 Mbps port): 148,000 packet per sec Forward rate (1000 Mbps port): 1,488,000 packet per sec Latency (1000 to 1000 Mbps): 10 µs (max) Queue Buffer Memory: 512 Kbytes per port Acoustic Noise: 0 dB Heat Dissipation: 38.8 BTU/hr 16 high-speed, auto-sensing 10/100/1000 Mbps Ethernet connectionsIntegrates 10, 100, & 1000 Mbps devices within a networkSilently delivers up to 2000 Mbps on each portFor ProSafe Lifetime Warranty please see: http://www.netgear.com/warranty
Packaging
Package ContentsGS116Quick Installation GuidePower CordPower Adapter
