Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - 8 Computer - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height
Vendor: Tripp Lite
Price: $1,582.99 - $2,135.96 CAD from 5 stores » Email this product to a friend » Write a review
» Discuss on forum » Post your deal
What is on Ebay
Product Features

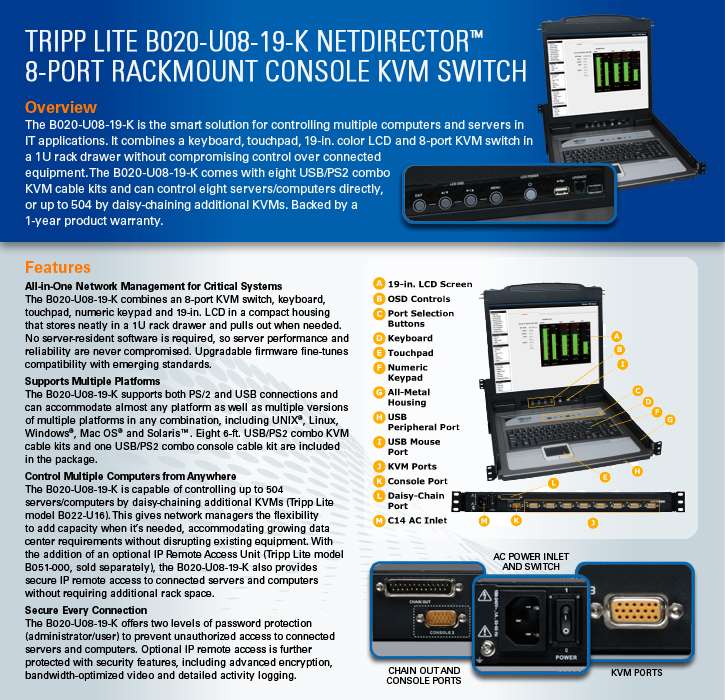

Tripp Lite B020-U08-19-K Console KVM Switch
The Tripp Lite B020-U08-19-K Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This Tripp Lite B020-U08-19-K Console KVM Switch combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers, no adapters needed. Also features an extra HD15 and (2) PS/2 ports on the rear of the Tripp Lite B020-U08-19-K Console KVM Switch, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers.
What It Is And Why You Need It
- Two level password security
- Daisy-chain up to 31 additional B022-U16 KVM switches to connect up to 504 computers
- Auto-scan feature allows for continuous scanning of multiple computers
Specifications
OVERVIEW- # Of Users 1
- Console Yes
- Port Control Push Buttons, Hotkeys, OSD
- Max CPU 504
- Unit Dimensions (HWD/in.) 1.75 x 17 x 27
- IP Remote Access YES WITH B050-000 OR B051-000
- Unit weight (lbs) 30.6
- Mounting accessories included Yes
- Color Black
- Style 1U Rackmount
- LCD Monitor (in.) 19
- Relative Humidity 0 to 80% RH, Non-condensing
- Operating Temperature 32 Degrees F to 120 Degrees F (0 to 50 C)
- Storage Temperature -4 Degrees F to 140 degrees F (-20 to +60 C)
- Ports 8
- Computer/Server Ports (x8) HD18 (Female)
- Daisy-Chain Port DB25 Male
- Firmware Upgrade Port RJ45
- Included Cable (Side A) - Connector 1 HD18 Male
- Included Cable (Side B) - Connector 1 HD15 Male
- Included Cable (Side B) - Connector 2 PS/2 male
- Included Cable (Side B) - Connector 3 PS/2 Male
- Included Cable (Side B) - Connector 4 USB A Male
- Other Ports - Port 1 USB A for Optional USB Mouse connection
- Other Ports - Port 2 USB A for Optional Flash Drive connection
- Remote Console Port HD18 Female + Dongle Cable Kit w/VGA, PS2, & USB Females
- Autoscan Yes
- Approvals UL, cUL, CE, FCC, RoHS
Features
- Integrated KVM console with 19 inch LCD
- Includes (8) P778-Series USB/PS2 Combo KVM Cable Kits
- Come with an external console port, allowing an external local console (PS/2 or USB) or external IP access device (model B051-000) to be connected to the KVM.
- An additional USB port on the front panel allows for the connection of an external mouse
- Dual Interface: supports computers with PS/2 or USB keyboards and mice
- Keyboard and mouse emulation (PS/2 and USB) allows for simultaneous booting of computers even when the console focus is elsewhere
- An additional external USB port allows for sharing of a USB peripheral among all ports on the KVM switch
- Multiplatform support: supports Windows (2000, XP, Vista, 7), Linux, Mac and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Daisy-chain up to 31 additional B022-U16 KVM switches to connect up to 504 computers
- Daisy-chained station position is automatically sensed no need for manual DIP switch settings
- Station ID LED indicates the switches station position
- No software required
- Available OSD Languages: English, Spanish, French, German, and Japanese
- Select a computer via push-buttons, Hotkeys or On Screen Display (OSD) menus
- Auto-scan feature allows for continuous scanning of multiple computers
- Hot Pluggable: add/remove computers without powering down the KVM switch
- Two level password security: only authorized Users can view and control the connected computers (up to four Users and one Administrator)
- Superior video quality: console supports resolutions up to 1280 x 1024
- Windows Server 2008 and Win7 compatible
- Rackmountable in 19inch rack system (1U)
- Firmware upgradeable
- Input Power: 100-240VAC, 50/60Hz, 1A
- Power Consumption: 120V, 28.5W / 230V, 29.1W
System Requirements
- PS/2 or USB computer
- P778-006 KVM Cable kit is required for each connected computer/server
- Supports Windows (2000, XP, Vista, 7), Linux, MAC, and SUN operating systems
What's Included:
- 1 - B020-U08-19-K Console 8port KVM Switch w/19" LCD
- 8 - P778-006 PS2/USB Combo Cable Kits
- 1 - PS2/USB Combo Console Cable Kit
- 1 - RJ45 to DB9 Firmware Upgrade Cable
- 1 - C13 to 5-15P Power Cord
- 1 - CD w/Owners Manual
- 1 - Quick Start Guide
- 1 - Grounding Wire
- 1 - Rackmount Hardware Kit
Product Specifications
Model | |
Brand | TRIPP LITE |
Model | B020-U08-19-K |
Spec | |
PC Connectors | 8 x 18-pin HD-18 Female Keyboard/Mouse/Video |
Console Connectors | 1 x 18-pin HD-18 Male Keyboard/Mouse/Video |
Computer Connections | 8 Ports |
Monitor Connections | 1 Port |
Video Resolution | 1280 x 1024 |
Packaging | |
Package Contents | NetDirector Console RM LCD KVM Switch 8 x PS2/USB Combo Console Cable Kit 1 x RJ45 to DB9 Firmware Upgrade Cable 1 x C13 to 5-15P Power Cord 1 x CD (Includes: Owner's Manual) 1 x Quick Start Guide 1 x Grounding Wire 1 x Rackmount Hardware Kit |
