Fractal Design Define R4 ATX Tower Case Window Blackout 2X5.25 8X3.5INT No PSU Front 2XUSB3.0 Audio

Fractal Design Define R4 ATX Tower Case Window Blackout 2X5.25 8X3.5INT No PSU Front 2XUSB3.0 Audio (Fractal Design: FD-CA-DEF-R4-BLO-W)
VPN: FD-CA-DEF-R4-BLO-W
Vendor: Fractal Design
Price: $149.99 - $149.99 CAD from 1 stores
» Email this product to a friend   » Write a review
» Discuss on forum   » Post your deal
  Store Product Price

Online
Fractal Design FD-CA-DEF-R4-BLO-W Black Computer Case
Newegg.ca - Once you know, you Newegg!
$149.99 CAD Buy Now

Product Reviews

Product Features


computer case micro atx
usb 3.0 bays

Fractal Design prides itself on being the company that listens and the Define R4 Blackout is proof of that. Packed with all of the great features that made the original Define R4 one of the most popular silent cases on the market, the Define R4 Blackout adds a subdued, all black interior.

Exclusive to the North American Market, the Define R4 Blackout not only features black drive trays and expansion slot covers, it also includes the all new, all black Silent Series R2 Fans.

The side and front door panels of the Define R4 Blackout are fitted with dense, sound-absorbing material making it a benchmark for noise reduction. Moreover, the Define R4 Blackout accommodates up to 8 HDDs, all modern graphics card sizes, and multiple ventilation options - including two Blackout Edition Silent Series R2 hydraulic bearing fans - to keep internal components at optimal temperatures.

Configuration flexibility is enhanced thanks to two hard drive cages (featuring steel drive trays with black silicone mounting grommets) that support a total of (8) 3.5"HDDs or 2.5"SSDs. The top 5-bay cage is easily rotatable and removable; removing the top cage allows support for graphics cards up to 470mm in length! The bottom 3-bay cage is mounted to the chassis by screws instead of rivets, allowing you to easily remove both drive cages for complete flexibility. The spacious sleek black interior can support CPU coolers up to 170mm high. If cooling becomes more of a priority, this system can support up to 7 fans with removable, washable filters to provide airflow from 5 sides of the case. The case also includes cable routing cutouts with improved rubber grommets to ensure greater fit and retention. The bottom of the case has a filter over the power supply and 120/140mm intake fan vent which can be easily removed for cleaning.

What It Is and Why You Need It:

  • Motherboard compatibility - Mini ITX, Micro ATX, ATX
  • ModuVent System offers optimal silence and performance capabilities
  • 2 HDD cages ? 5 bay and 3 bay - 3.5? HDD/ 2.5? SSD (8 in total)
  • Fan controller is integrated in the front panel and supports up to 3 fans
  • 2 All-Black Silent Series R2 ? hydraulic bearing fans with longer life time included

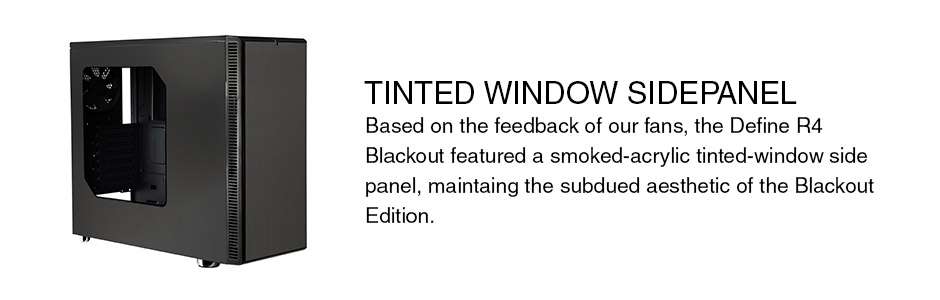

  • Has Side Panel Window
  • Supports graphics card lengths up to 295mm with top drive cage installed
  • Supports graphics card lengths up to 430mm with top drive cage removed
  • 2x USB 3.0, 2 x USB 2.0 and Audio I/O front panel ports
  • 2 x 5.25 inch bays with 5.25 -> 3.5 in converter included
  • Fan slots: 1 x 140mm and 1 x 120/140mm -front, 1 x 140mm - side panel, 1 x 140mm - rear, 1 x 120/140mm - bottom, 2 x 120/140mm top ? positions also support 240/280mm radiators




  • Product Features:

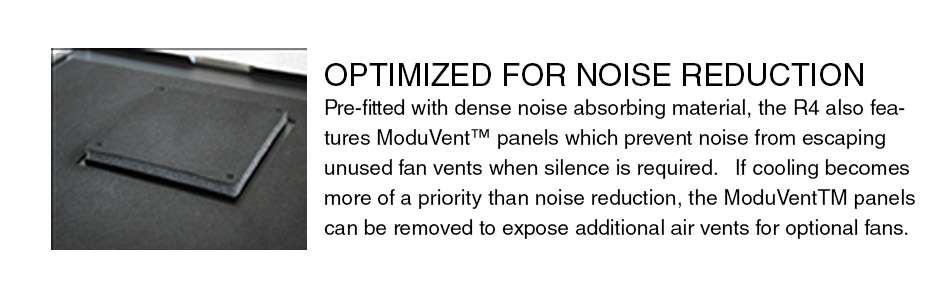

    • Pre-fitted with dense noise absorbing material
    • Has Side Panel Window
    • ModuVent System offers optimal silence and performance capabilities
    • 2 HDD cages ? 5 bay and 3 bay - 3.5? HDD/ 2.5? SSD (8 in total)
    • Top HDD cage (5 HDD) can be rotated 90 degrees or removed for additional airflow
    • 2 SSDs can be installed on the back of the motherboard plate
    • A wider case body allows for much improved cable routing capability behind the motherboard, now 26 mm (8mm wider)
    • Fan controller is integrated in the front panel and supports up to 3 fans
    • 2 All-Black Silent Series R2 ? hydraulic bearing fans with longer life time included

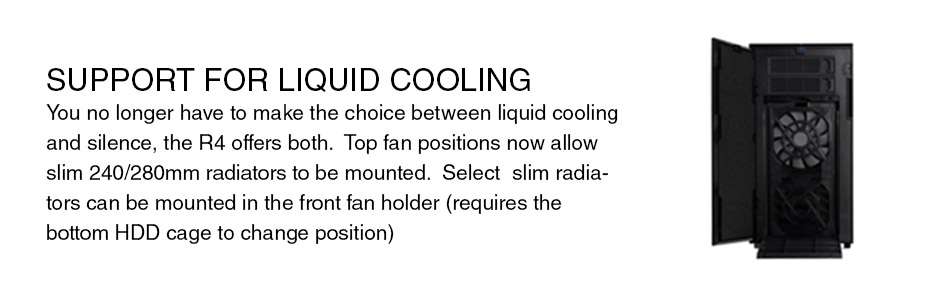

    • Top fan positions now allow slim 240/280mm radiators to be mounted
    • Select slim radiators can be mounted in front fan holder (requires the bottom HDD cage to change position)
    • New, tool-less front fan holder makes switching front fans easier
    • Front fan filter is now easily removed and is washable
    • The bottom air filter is now extended to cover the bottom fan position as well as the PSU air intake
    • Bottom HDD cage is fitted with screws instead of rivets and can be easily removed
    • Rubber grommets are improved to ensure better fit and retention
    • Thicker steel improves case structural rigidity
    • Convenient top I/0 panel for easy access
    • Advanced Cable Management System
    • Supports graphics card lengths up to 295mm with top drive cage installed
    • Supports graphics card lengths up to 430mm with top drive cage removed
    • 2 x 5.25 inch bays with 5.25 -> 3.5 in converter included
    • Sleek all-black interior
    • 2x USB 3.0, 2 x USB 2.0 and Audio I/O front panel ports
    • Fan slots: 1 x 140mm and 1 x 120/140mm -front, 1 x 140mm - side panel, 1 x 140mm - rear, 1 x 120/140mm - bottom, 2 x 120/140mm top ? positions also support 240/280mm radiators
    • Motherboard compatibility - Mini ITX, Micro ATX, ATX

Product Specifications

Model
BrandFractal Design
ModelFD-CA-DEF-R4-BLO-W
Spec
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityMicro ATX / ATX / Mini-ITX
With Side Panel WindowYes
Expansion
External 5.25" Drive Bays2
Internal 3.5" Drive Bays8
Internal 2.5" Drive Bays2
Expansion Slots8
Front Ports
Front Ports2 x USB 3.0, 2 x USB 2.0 and Audio I/O front panel ports
Cooling System
120mm Fans1 x 120/140mm - bottom
2 x 120/140mm top - positions also support 240/280mm radiators
140mm Fans1 x 140mm and 1 x 120/140mm -front
1 x 140mm - side panel
1 x 140mm - rear
1 x 120/140mm - bottom
2 x 120/140mm top - positions also support 240/280mm radiators
Side Air ductNo
Physical Spec
Weight27.1lbs
Features
FeaturesPre-fitted with dense noise absorbing material

ModuVent System offers optimal silence and performance capabilities

2 HDD cages - 5 bay and 3 bay - 3.5" HDD/ 2.5" SSD (8 in total)

Top HDD cage (5 HDD) can be rotated 90 degrees or removed for additional airflow

2 SSDs can be installed on the back of the motherboard plate

A wider case body allows for much improved cable routing capability behind the motherboard, now 26 mm (8mm wider)

Fan controller is integrated in the front panel and supports up to 3 fans

2 All-Black Silent Series R2 ? hydraulic bearing fans with longer life time included

Top fan positions now allow slim 240/280mm radiators to be mounted

Select slim radiators can be mounted in front fan holder (requires the bottom HDD cage to change position)

New, tool-less front fan holder makes switching front fans easier

Front fan filter is now easily removed and is washable

The bottom air filter is now extended to cover the bottom fan position as well as the PSU air intake

Bottom HDD cage is fitted with screws instead of rivets and can be easily removed

Rubber grommets are improved to ensure better fit and retention

Thicker steel improves case structural rigidity

Convenient top I/0 panel for easy access

Advanced Cable Management System

Supports graphics card lengths up to 295mm with top drive cage installed

Supports graphics card lengths up to 430mm with top drive cage removed

2 x 5.25 inch bays with 5.25 to 3.5 in converter included

Sleek all-black interior

2x USB 3.0, 2 x USB 2.0 and Audio I/O front panel ports

Fan slots: 1 x 140mm and 1 x 120/140mm -front, 1 x 140mm - side panel, 1 x 140mm - rear, 1 x 120/140mm - bottom, 2 x 120/140mm top - positions also support 240/280mm radiators

M/B compatibility - Mini ITX, Micro ATX, ATX
