ASUS M5A97 LE R2.0 mATX AM3+ 970/SB950 DDR3 2PCI-E16 2PCI-E1 2PCI SATA3 USB3.0 Motherboard

ASUS M5A97 LE R2.0 mATX AM3+ 970/SB950 DDR3 2PCI-E16 2PCI-E1 2PCI SATA3 USB3.0 Motherboard (ASUS: M5A97 LE R2.0)
ASUSVPN: M5A97 LE R2.0
Vendor: ASUS
Price: $99.99 - $99.99 CAD from 1 stores
» Email this product to a friend   » Write a review
» Discuss on forum   » Post your deal
  Store Product Price

Online
ASUS M5A97 LE R2.0 ATX AMD Motherboard with UEFI BIOS
Newegg.ca - Once you know, you Newegg!
$99.99 CAD Buy Now

Product Reviews

ASUS M5A97 LE R2.0 mATX AM3+ 970/SB950 DDR3 2PCI-E16 2PCI-E1 2PCI SATA3 USB3.0 Motherboard
0%
Excellent
100%
Very Good
0%
Average
0%
Below Average
0%
Poor
Rating: 8/10
With 1 User Reviews
Gratton@NCIX
Rating:

Review Date: 02/10/13
Cons: little flimsy

Pros: Price, features, good BIOS interface
Comment:
Everything went well when building this system. Paired with a fx-8320. I noticed that the PCB was a little flimsy and tended to bend easylling in installation. Backplane anesthetic, but do the job. Would recommand for any budget PC

Product Features

ATX AM3 Plus Socket
970 Chipset CrossfireX Ready
Raid Capable Gigabit LAN

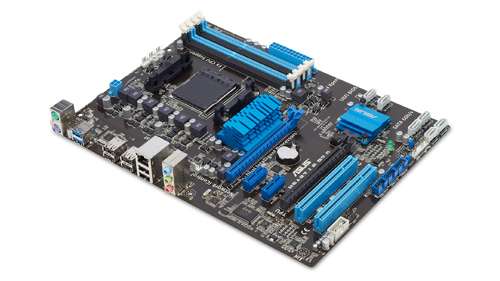

ASUS M5A97 LE R2.0 AM3+ Motherboard
Build a solid foundation for your PC and experience unprecedented performance with the ASUS M5A97 LE R2.0 AM3+ Motherboard. This motherboard is engineered to accommodate Sempron, Athlon II, and Phenom II processors for you to enjoy superior system performance. Plus, it can support up to 32GB of DDR3 Memory for ultra-fast and lag-free operations. Expect stable and high-speed interaction between the motherboard and hard drives as it utilizes a SATA III interface. With its RAID support, you don't need to worry about data loss during system failures. To satisfy your demanding visual needs, this motherboard is CrossFireX Ready to support multi-GPU setup. For seamless and whopping speeds of data transfer, this motherboard is equipped with USB 2.0 ports. Have the freedom to connect video cards, sound cards, wireless adapters and more with its PCI Express X16 Slots. Integrate powerful components into the ASUS M5A97 LE R2.0 AM3+ Motherboard, purchase it now!

What It Is And Why You Need It:

  • ATX Form Factor; offers a reliable platform for cutting-edge PC components
  • Socket AM3+ Processor Interface; works with AMD Phenom II, AMD Athlon II, and Sempron 100 Series Processors
  • 4x DIMM Memory Slots; supports up to 32GB of DDR3 Memory
  • 6x SATA 6.0Gb/s; lets you connect hard drives, solid state drives, and optical drives
  • PCI Express X16 Slots; allows you to integrate video cards, sound cards, wireless adapters, and more

A Closer Look:

Product Specifications

Model
BrandASUS
ModelM5A97 LE R2.0
Supported CPU
CPU Socket TypeAM3+
CPU TypeFX / Phenom II / Athlon II / Sempron 100 Series
FSB2400MHz Hyper Transport (4800 MT/s)
Chipsets
North BridgeAMD 970
South BridgeAMD SB950
Memory
Number of Memory Slots4×240pin
Memory StandardDDR3 2133(O.C.)/1866/1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
Expansion Slots
PCI Express 2.0 x162 (x16, x4)
PCI Express x12
PCI Slots2
Storage Devices
SATA 6Gb/s6 x SATA 6Gb/s
SATA RAID0/1/5/10
Onboard Video
Onboard Video ChipsetNone
Onboard Audio
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
Onboard LAN
LAN ChipsetRealtek 8111F
Max LAN Speed10/100/1000Mbps
Rear Panel Ports
PS/22
USB 1.1/2.06 x USB 2.0
USB 3.02 x USB 3.0
Audio Ports3 Ports
Internal I/O Connectors
Onboard USB6 x USB 2.0
Other Connectors1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
Physical Spec
Form FactorATX
Dimensions12" x 9"
Power Pin24 Pin
Features
FeaturesDual Intelligent Processors - TPU + EPU

USB 3.0 Boost - Faster USB 3.0 Transmission with UASP

Network iControl - Real-time Network Bandwidth Control

UEFI BIOS - Flexible & Easy BIOS Interface

Auto Tuning - Auto System Level Up

Quad-GPU CrossFireX Support!

True USB 3.0 & SATA 6Gb/s Support - Fully Unleash Performance

Windows 8 Ready - Assured Compatibility
