Location: Home > Computers > Components > Motherboards > ASUS P8B75-M/CSM mATX LGA1155 B75 DDR3 1PCI-E16 1PCI-E4 2PCI SATA3 DVI HDMI USB3.0 Motherboard

ASUS P8B75-M/CSM mATX LGA1155 B75 DDR3 1PCI-E16 1PCI-E4 2PCI SATA3 DVI HDMI USB3.0 Motherboard

ASUS P8B75-M/CSM mATX LGA1155 B75 DDR3 1PCI-E16 1PCI-E4 2PCI SATA3 DVI HDMI USB3.0 Motherboard (ASUS: P8B75-M/CSM)
ASUSVPN: P8B75-M/CSM
Vendor: ASUS
Price: $89.99 - $89.99 CAD from 1 stores
» Email this product to a friend   » Write a review
» Discuss on forum   » Post your deal
  Store Product Price

Online
ASUS P8B75-M/CSM Micro ATX Intel Motherboard
Newegg.ca - Once you know, you Newegg!
$89.99 CAD Buy Now

Product Reviews

ASUS P8B75-M/CSM mATX LGA1155 B75 DDR3 1PCI-E16 1PCI-E4 2PCI SATA3 DVI HDMI USB3.0 Motherboard
0%
Excellent
100%
Very Good
0%
Average
0%
Below Average
0%
Poor
Rating: 8/10
With 1 User Reviews
Vicki_L@NCIX
Rating:

Review Date: 07/09/12
Cons: - only 1 SATA 3 port- 4 USB ports in back- 2 USB3.0 ports in backThese cons may irk some users.

Pros: - easy to piece to together the parts on the mobo- 1 USB3.0 header mid-board
Comment:
I used this for a Linux/Win7 build. Currently using a Pentium G630, G.Skill 8GB DDR3-1600 and GT440 on it. The G630 CPU cannot utilize the 1600 RAM and downclocks to 1066 with tigher timings. Comes with Lucid MVP for hybrid graphics, hadn't tested it yet. For a cheap, simple build, it does the job quite nicely. So far, no complaints about it.This board is more meant for business application than anything else, so don't expect huge things from it.

Product Features

Micro ATX Form Factor DDR3 Memory
SATA III 6Gbps USB 3.0

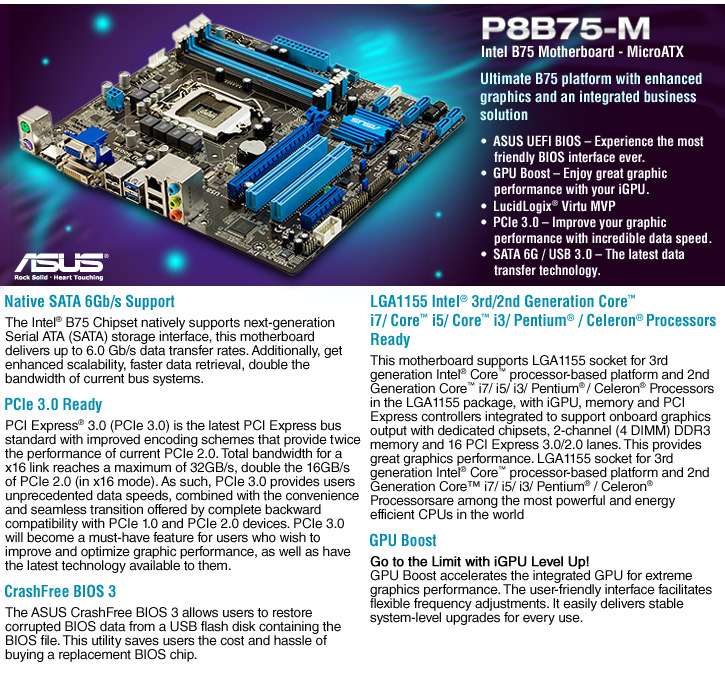

ASUS P8B75-M/CSM Intel B75 Motherboard
Enhance your business performance with the ASUS P8B75-M/CSM Intel B75 Motherboard. This integrated business solution offers to boost your productivity and your PC’s graphics performance. It efficiently runs programs and applications using a 3rd or 2nd Generation Intel® processor and an unbuffered DDR3 memory, while its SATA III and II ports manages data between your PC and compatible hard drives and optical drives. For excellent graphics on your PC screen, GPU Boost technology increases the performance of the included GPU. Other features include ASUS UEFI BIOS, a Gigabit LAN port, and two USB 3.0 ports. Get the most out of your PC by installing the ASUS P8B75-M/CSM Intel B75 Motherboard.

What It Is And Why You Need It:

  • LGA1155 socket; supports 3rd and 2nd Generation Intel® processors
  • Four DIMM slots; improves computing performance with up to 32GB unbuffered DDR3 memory
  • SATA III port; delivers data from a hard drive or optical drive at 6Gb/s speed
  • GPU Boost; accelerates the integrated GPU for extreme graphics performance
  • PCI Express 3.0 x16; transfers data from an integrated video card at high speed
  • Gigabit LAN port; provides a reliable wired network connection
  • Two USB 3.0 ports; performs super-speed data transfers from connected USB devices

Product Specifications


Number of Memory Slots: 4×240pin
Memory Standard: DDR3 1600/1333/1066
Onboard Video Chipset: None
Audio Chipset: VIA VT1708S
Max LAN Speed: 10/100/1000Mbps
SATA 3Gb/s: 5
CPU Type: Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies: Turbo Boost Technology 2.0
