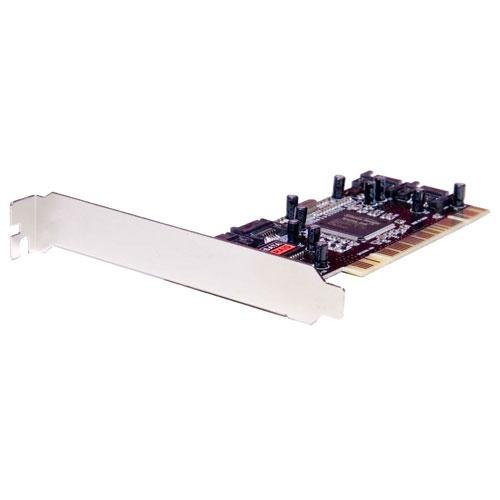

SYBA SD-SATA-4P PCI SATA Controller Card

  Store Product Price

SYBA SD-SATA-4P PCI SATA Controller Card
Newegg.ca - Once you know, you Newegg!
$20.99 CAD Buy Now

What is on Ebay

  End Time Product Price
4-port PCI SATA Controller Card, 4 ports channel, SIL3114 Chipset, Software RAID 4-port PCI SATA Controller Card, 4 ports channel, SIL3114 Chipset, Software RAID $20.49 CAD Shop Now
SYBA SD-SATA-4P PCI SATA (1.5Gb/s) 4 Port RAID 0/1 Card SYBA SD-SATA-4P PCI SATA (1.5Gb/s) 4 Port RAID 0/1 Card $29.99 CAD Shop Now
Syba SD-SATA-4P 4 Port PCI SATA RAID Controller Card Syba SD-SATA-4P 4 Port PCI SATA RAID Controller Card $30.93 CAD Shop Now
Syba SD-SATA-4P Serial ATA150 4x Ports RAID Controller Card with SIL3114 Ch Syba SD-SATA-4P Serial ATA150 4x Ports RAID Controller Card with SIL3114 Ch $57.23 CAD Shop Now

Product Reviews

SYBA SD-SATA-4P PCI SATA Controller Card
Very Good
Below Average
Rating: 9.43/10
With 7 User Reviews

Review Date: 03/27/13
Cons: On the box - "Support Linus.". No mention of whether the vitamin guy, the NCIX guy or the OS guy. There are reports of some cards with a different Silicon Image processor corrupting data.

Pros: Price: I paid around $35 for my first version of this card. this one on sale for under $25 seems a great deal.This is the simple solution for adding drives to an old system.
I have some old towers, and now some old P4 systems (with pcie 16 for use after this). I can get cooler master drive cages with cooling for $23.00, and cabling for $4 per drive. A proper single rail 12V PS is vital for adding backup drives!Use this card with a check-summing system! I will update  as I go. Yep hugely slow!

Review Date: 10/27/12
Cons: None

Pros: Inexpensive
Used this to replace a dead controller. Seems to be working fine with a RAID 0 setup. The array is preforming well.

Review Date: 01/25/12
Cons: RAID is a bit shoddy

Pros: It does exactly what it saysPretty small4 ports
This is a nice little PCI SATA controller. It really helps when you want to add a few extra hdd's and the only thing you're lacking is the sata controller. Be sure to pick up some 3.5" to 5.25" brackets in case you run out of space for hdd's.

Review Date: 01/05/12
Cons: Only supports SATA spec 1.0 (1.5 Gb/s), using with newer SATA 2.0 (3 Gb/s) or 3.0 (6 Gb/s) drives won't be optimum.

Pros: Inexpensive way to add internal SATA drives to a PC that doesn't have enough SATA ports (or none at all on older motherboards);supports RAID 0, 1 or 0+1.
This filled a need to quickly & cheaply add more drives on a home server running WHS.If you need additional 4 SATA ports at higher SATA2 or SATA3 speeds, or other RAID types, then look at other Syba or other brands cards. Examples from NCIX current product list:SKU 53815 Syba SY-PEX40008 4 Channel SATA II Controller Card PCI-E 1xSKU 48080 Syba 4 Port Internal SATA II RAID 0/1/5/10/JBOD PCI Controller Card

Review Date: 09/24/11
Cons: -none yet!

Pros: +provides four extra sata ports with optional raid support
bought this mainly to add a new harddrive to my old S478 P4 system which doesn't have any sata. chose this over a regular converter for the RAID setup. the card is very simple to use and does its job. couldn't be happier.

Review Date: 01/21/11
Cons: None.

Pros: Inexpensive.
This controller card is an easy and inexpensive way to add more sata ports to your computer. Works great with Windows Home Server.

Review Date: 06/16/10
Cons: None so far.

Pros: Works right out of the box on Windows 7.
If you look at my review of the SD-SATA-150R I've made, you will see this card is much more compatible.It is currently plugged to a blu-ray reader (ASUS BR-04B2T), it works just fine.It's a cheap way to get more SATA ports.Don't expect to get 200 MB/s from this card (RAID 0 or 1), you will be limited to the PCI bandwidth of your motherboard.
Click Here Show More Product Reviews

Product Features

Product Specifications

Internal Connectors4 x SATA 150
Transfer RateTransfer rate up to 1.5Gbps
Operating Systems SupportedMS Windows 98SE/Me/2000/XP/NT 4.0
FeaturesPCI Specification Revision 2.3 compliant Serial ATA Specification Revision 1.0 compliant Compliant with programming interface for Bus Master IDE Controller, Rev 1.0 Silicon Image SIL 3114 host controller chip Compliant with Serial ATA 1.0 specification Support 66Mhz PCI with 32-bit data Support programmable and EEPROM, FLASH & EPROM loadable PCI class mode Support ATAPI devices: CD-ROM, DVD-ROM, etc Integrated SATA Transport, Link Logic & PHY layer 48-Bit sector addressing Virtual DMA RAID function (Optional)Supports software RAID 0 (striped), RAID 1 (mirror), and RAID 0+1 Supports co-exist RAID set and Non-RAID HDD Allows HDDs with different sizes to be configured in a RAID set
Package ContentsSD-SATA-4PUser ManualDriver Disk2 x SATA Cable
