ATEN CE700A USB KVM Extender
Vendor: ATEN
Price: $254.47 - $296.09 CAD from 3 stores
» Discuss on forum » Post your deal
Product Features

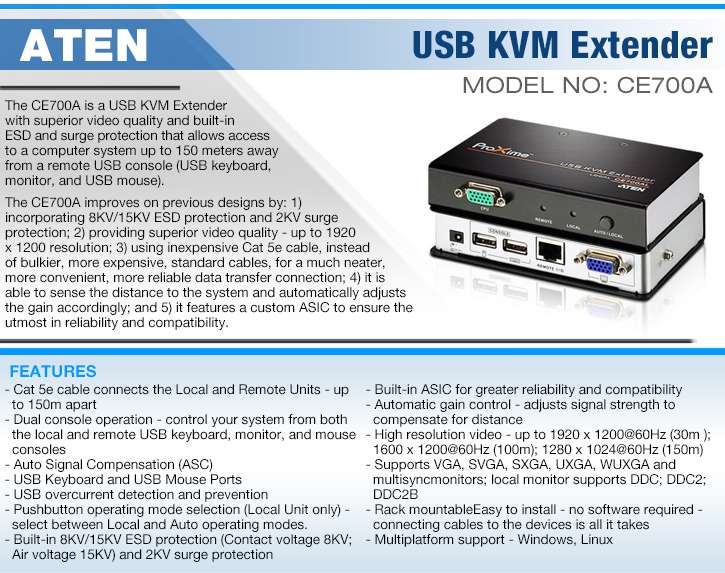

Aten CE700A USB KVM Extender
Get greater reliability and compatibility with the Aten USB KVM Extender. It allows access to a PC with a USB from a remote USB VGA console (VGA monitor, USB keyboard and USB mouse) with CAT5e cable from up to 150 feet away. The KVM Extender has a 1920 x 1200 resolution that provides amazing video quality. It also comes with standard cables for a more reliable data transfer connection. With a built-in 4 USB Type A Female ports for your keyboard and mouse, 2 HDB-15 Female ports for video, SPHD-17 Female port for KVM switch and 2 RJ-45 Female port for Unit to Unit, this KVM Extender allows you to access a remote computer with better flexibility. Compatible with VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors, expect an efficient way to work out on an optimized display. Buy the Aten USB KVM Extender today!
What It Is And Why You Need It:
- 1920 x 1200 resolution; provides amazing video quality
- Standard cables; for a more reliable data transfer connection
- Compatibility; supports VGA, SVGA, SXGA, UXGA, WUXGA and multisync monitors
Product Specifications
Model | |
Brand | ATEN |
Model | CE700A |
Spec | |
Type | D-Sub, USB |
Console Connectors | Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) |
Video Resolution | 1920 x 1200 @ 60Hz (30m ) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m) |
PC Selection | Push Buttons |
Temperature | Operating: 0 - 50°C Storage: -20 - 60°C |
Humidity | 0-80% RH, Non-condensing |
Dimensions | 12.50 x 8.15 x 2.50 cm |
Features | |
Features | Cat 5e cable connects the Local and Remote Units - up to 150m apart Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) USB Keyboard and USB Mouse Ports USB overcurrent detection and prevention Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection Automatic gain control - adjusts signal strength to compensate for distance High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m) Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes Multiplatform support - Windows, Linux |
